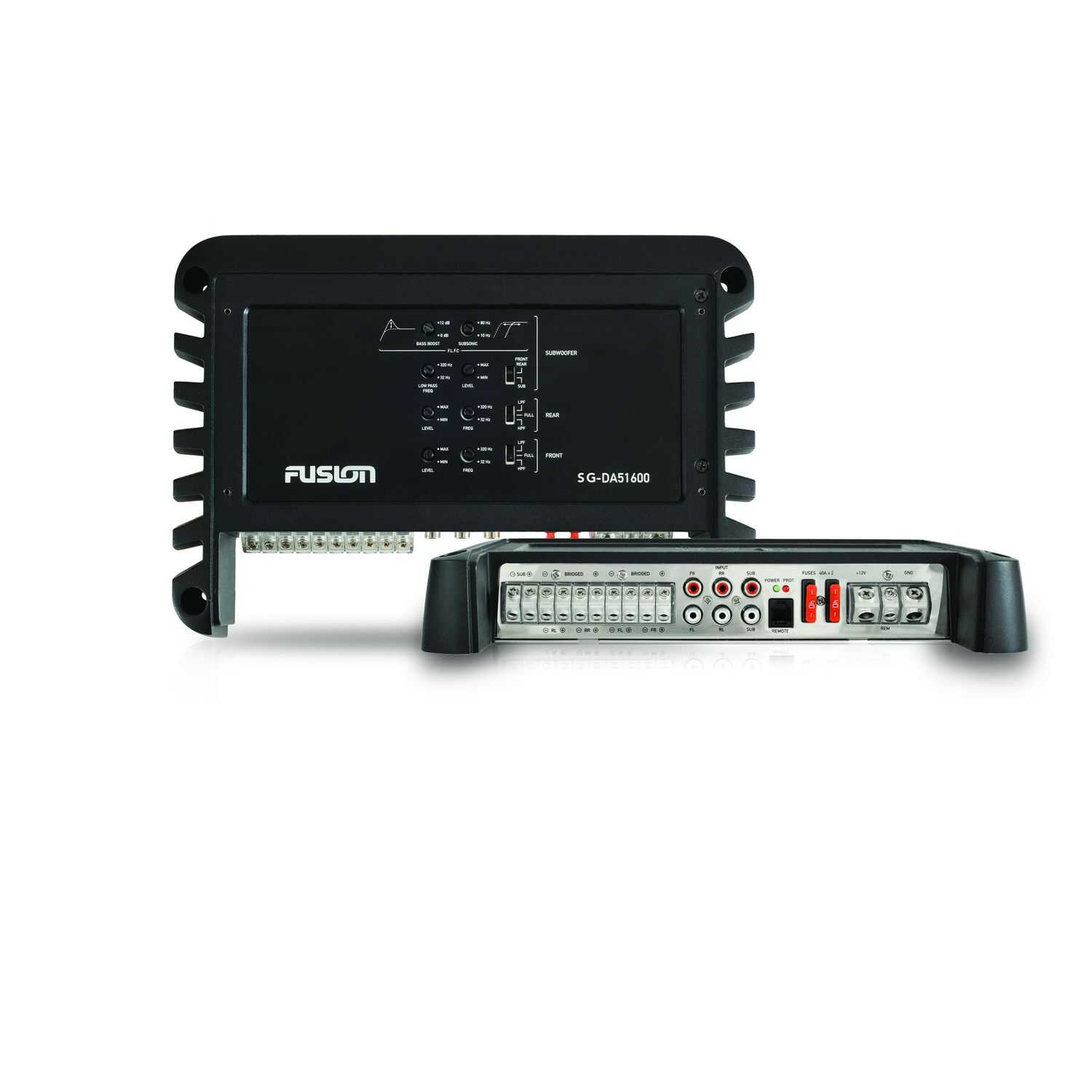

Die Verstärker der Signature-Serie von Fusion sind speziell für den Einsatz in der Schifffahrt entwickelt worden. Sie verfügen über einen hervorragenden Schutz vor Umwelteinflüssen und liefern die außergewöhnliche FUSION-Signature-Performance auf dem Wasser wie nie zuvor.

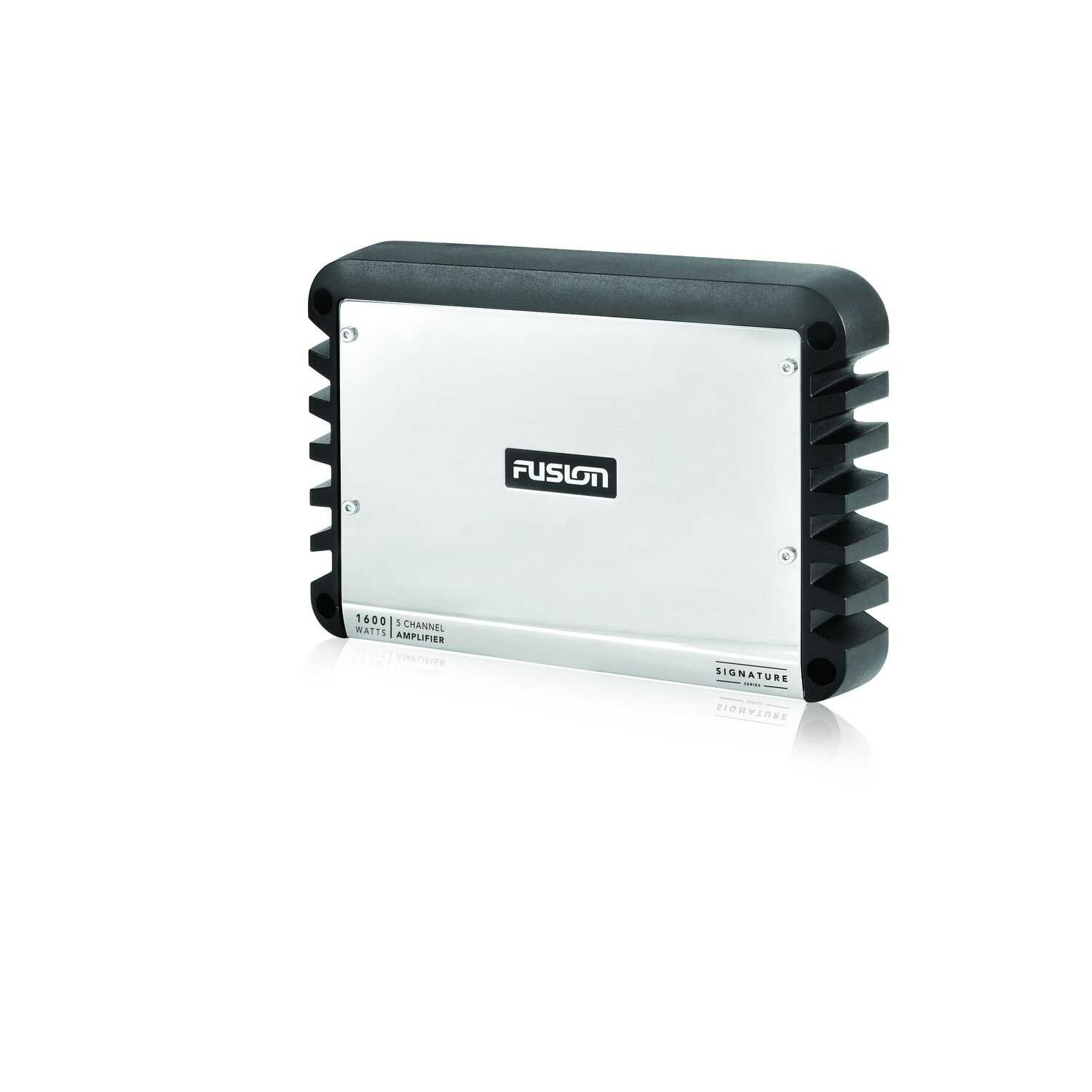

Die eindrucksvollen FUSION Signature Series Marine Verstärker werden im Edelstahlgehäuse ausgeliefert, die Platine ist gegen Verschmutzung und salzhaltige Luft geschützt.
• Hochleistungsverstärker Klasse-D
• Vergossene Platine
• Kühlelement aus einem Guss
• 5-fach Schutz - Temperatur / Polarität / DC Offset / Über- und Unterspannung
• Versteckter Einbau der Kabel, Zugriff auf die Einstellungen des Verstärkers
• FLFC Niederfrequenzkontrolle - genaues Finetuning des Frequenzgangs
Ergänzen Sie Ihr FUSION-Entertainment-Paket mit den passenden Subwoofern und Lautsprechern aus der FUSION-Signature-Serie. Hier klicken
| Model |
SG-DA12250 1-Kanal |
SG-DA41400 4-Kanal |
SG-DA51600 5-Kanal |
|---|---|---|---|
| Amplifier Class | Class-D | Class-D | Class-D |
| Subwoofer Frequency Response | 10Hz - 320Hz | 10Hz - 65kHz | 10Hz - 50kHz |
| Peak Power | 2250 Watts | 1400 Watts | 1600 Watts |
| Rated Power (4 Ohms) | 500 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD | 150 Watts RMS x 4 @ 14.4V - 4 Ohms 1% THD | 80 Watts RMS x 4 + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD |
| Rated Power (2 Ohms) | 850 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD | 220 Watts RMS x 4 @ 14.4V - 2 Ohms 1% THD | 130 Watts RMS x 4 + 330 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD |
| Rated Power (1 Ohm) | 1100 Watts RMS x 1 @ 14.4V - 1 Ohm 1% THD | 440 Watts RMS x 2 @ 14.4V - 4 Ohm Bridged 1% THD | 250 Watts RMS x 2 @ 14.4V - 4 Ohms Bridged 1% THD + 250 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD |
| Length | 300mm [11-13/16”] | 300mm [11-13/16”] | 300mm [11-13/16"] |
| Depth | 210mm [8-1/4”] | 210mm [8-1/4”] | 210mm [8-1/4"] |
| Height | 50mm [2”] | 50mm [2”] | 50mm [2"] |
| Model |
SG-DA61500 6-Kanal |
SG-DA82000 8-Kanal |
|---|---|---|
| Frequency Response | 10 Hz to 40 kHz (-3dB @ 4 Ohm rated power) | 10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power) |
| Peak Power Output | 1500 W | 2000 W |
| Rated Power Output (4 Ohm) | 100 W rms x 6 @ 14.4 V input < 1% THD + N (EIA/CEA-490A) | 100 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Rated Power Output (2 Ohm) | 140 W rms x 6 @ 14.4 V input < 1% THD + N (EIA/CEA-490A) | 140 W rms x 8 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Rated Power Output (4 Ohm Bridged) | 280 W rms x 3 @ 14.4 V input < 1% THD + N (EIA/CEA-490A) | 280 W rms x 4 @ 14.4 V input < 1% THD+N (EIA/CEA-490A) |
| Input Sensitivity | 0.3 V to 8 V rms, user adjustable | 0.3 V to 8 V rms, user adjustable |
| Input Impedance | 7k Ohm nominal | 7k Ohm nominal |
| High-Pass/Low-Pass Full Range Filter | Yes, user selectable | Yes, user selectable |
| Filter Cross-Over Frequency | 32 Hz to 320 Hz, user adjustable | 32 Hz to 320 Hz, user adjustable |
| Bass-Boost | 0 to 9 dB, user adjustable (zone 3 only) | 0 to 9 dB, user adjustable (zone 2/4 only) |
| Operating Voltage | 10.8 V to 16 V dc | 10.8 V to 16 V dc |
| Remote Switch-On | Yes - 6 V threshold | Yes - 6 V threshold |
| Current Consumption (Standby) | < 1 mA @ 14.4 V input | < 1 mA @ 14.4 V input |
| Current Consumption (Idle) | < 2.5 A @ 14.4 V input | < 2.5 A @ 14.4 V input |
| Current Consumption (Max) | 75 A @ 14.4 V input | 100 A @ 14.4 V input |
| Fuse Rating | 3 x 40 A ATC Blade-Type (SAE J1171 Compliant) | 4 x 40 A ATC Blade-Type (SAE J1171 Compliant) |
| Protection Circuits | Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit | Reverse-Voltage, Input Under/Over Voltage, Over-Temperature, Output Short-Circuit |
| Operating Temperature Range | 0 to 50°C (32 to 122°F) | 0 to 50°C (32 to 122°F) |
| Ingress Protection Rating | Dry area installation only | Dry area installation only |
| Dimensions | 420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9-16" (L) x 8-1/4" (W) x 2-1/4" (H) | 420 mm (L) x 210 mm (W) x 57 mm (H) or 16-9/16" (L) x 8-1/4" (W) x 2-1/4" (H) |
| Weight | 5.15 kg or 11.35 lb with cover | 5.20 kg with cover or 11.5 lb with cover |
| Warranty | 3 years | 3 years |
